Description

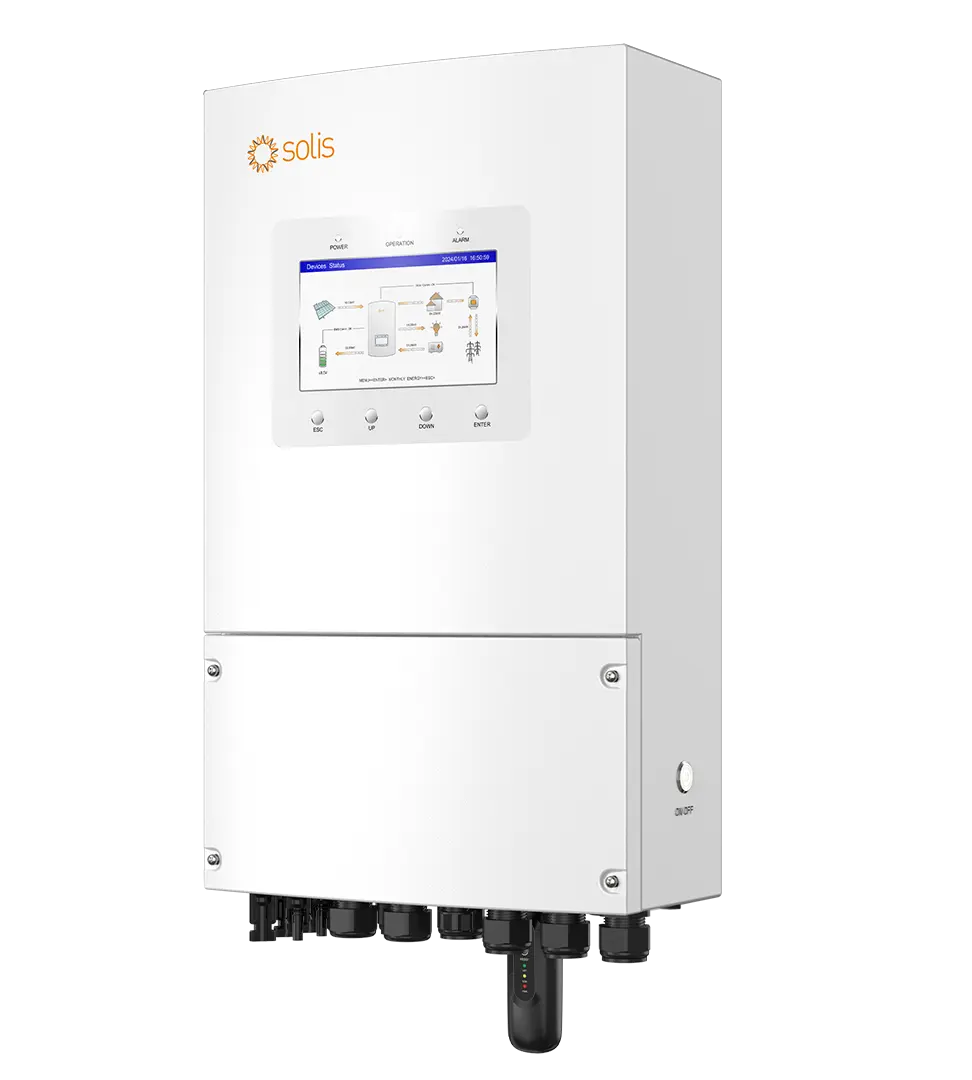

Solis S6-EH1P8K-L-PLUS | Solarator Series 8kW Single-Phase Hybrid Inverter
Uninterrupted power, even in areas with grid instability.
Part of Solis's Solarator Series, the S6-EH1P8K-L-PLUS is a single-phase, low-voltage energy storage inverter built to operate seamlessly with a generator. It supports PV input up to 160% of its rated DC power, switches between on/off-grid in under 4ms, and handles 200% overload for 10 seconds off-grid — ideal for reliably starting motors, water pumps, and air conditioners.
Why Choose This Inverter
- Maximized Solar Utilization — Supports PV input up to 160% of the inverter's rated DC power
- Future-Ready PV Compatibility — Handles up to 21A PV input current for higher-power PV modules
- Robust Off-Grid Startup — 200% overload for 10s in off-grid mode for stable motor, pump, and AC startup
- Ultra-Fast Switching — On/off-grid switching in under 4ms for uninterrupted power
- Wide Battery Compatibility — Works with any battery between 40V and 60V
- Grid-Tied Flexibility — Supports existing PV grid-tied connections for export control and off-grid use
- Generator Ready — Multiple generator connection methods with auto control for flexible deployment
- Expandable System — Supports up to 6 units in parallel for greater capacity
- Smart Load Management — Extends backup time for critical loads
- Customizable Backup — Adjustable battery backup level for uninterrupted power
- PV-Only Off-Grid Operation — Reduces upfront costs by skipping the need for a battery in some setups
- SolisCloud Platform — Smart remote control, AI optimization, and instant troubleshooting
- Large 7" Touchscreen — Industrial-grade display for user-friendly local operation
- Harsh-Condition Ready — IP66 ingress protection rating
Key Specifications
| Parameter | Value |
|---|---|
| Recommended Max. PV Array Size | 16 kW |
| Max. Usable PV Input Power | 12.8 kW |
| Max. PV Input Voltage | 500 V |
| Rated Voltage | 330 V |
| MPPT Voltage Range | 90–435 V |
| Max. Input Current | 32A / 32A |
| MPPT Number / Max. Input Strings | 2 / 4 |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Power | 8 kW |
| Max. Charge/Discharge Current | 190 A |
| Communication (Battery) | CAN / RS485 |
| Rated Output Power (Grid) | 8 kW |
| Max. Apparent Output Power | 8 kVA |
| Rated Grid Voltage | 220V / 230V |
| Rated Grid Output Current | 36.4A / 34.8A |
| Power Factor | >0.99 (0.8 leading – 0.8 lagging) |
| THDi | <3% |
| Max. AC Passthrough Current | 50 A |
| Rated Output Power (Back-up) | 8 kW |
| Max. Apparent Output Power (Back-up) | 2× rated power for 10s |
| Back-up Switch Time | <4 ms |
| THDv (@linear load) | <2% |
| Max. Efficiency | 96.2% |
| EU Efficiency | 96.1% |
| BAT Charged by PV / AC Max. Efficiency | 95.3% / 93.9% |
| BAT Discharged to AC Max. Efficiency | 93.8% |
| Dimensions (W×H×D) | 335 × 560 × 253 mm |
| Weight | 23.5 kg |
| Topology | High frequency isolation (for battery) |
| Operating Ambient Temperature Range | -25°C ~ +60°C |
| Relative Humidity | 0–100% |
| Ingress Protection | IP66 |
| Noise Emission (typical) | <65 dB(A) |
| Cooling Concept | Intelligent fan-cooling |
| Max. Operation Altitude | 3000 m |
Protection Features
Anti-islanding protection, ground fault monitoring, DC reverse-polarity protection, and optional Integrated AFCI 2.0.
Connectivity & Interfaces
MC4 plug PV connection, terminal-block battery and AC connections, 7.0" LCD display with Bluetooth + APP. Communication: RS485, CAN, with optional WiFi, GPRS, and LAN.
Certifications
NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, EN 50549-1, MEA, PEA, NBR 16149, NBR 16150, G98, G99, CEI 0-21, NTS 631 TypeA; IEC/EN 62109-1/-2, EN 61000-6-2/-3
Ideal For
Residential and small commercial single-phase solar-plus-storage systems in areas with grid instability — combining generator integration, smart load management, and cloud-based remote monitoring, with the flexibility to scale into a multi-inverter parallel system.
Specifications per manufacturer datasheet (Solis Solarator Series S6-EH1P(3-8)K-L-PLUS / S6-EH1P10K-L-PLUS(21A), Single Phase Low Voltage, South Africa Flyer V2.1). Specifications subject to change without notice.
