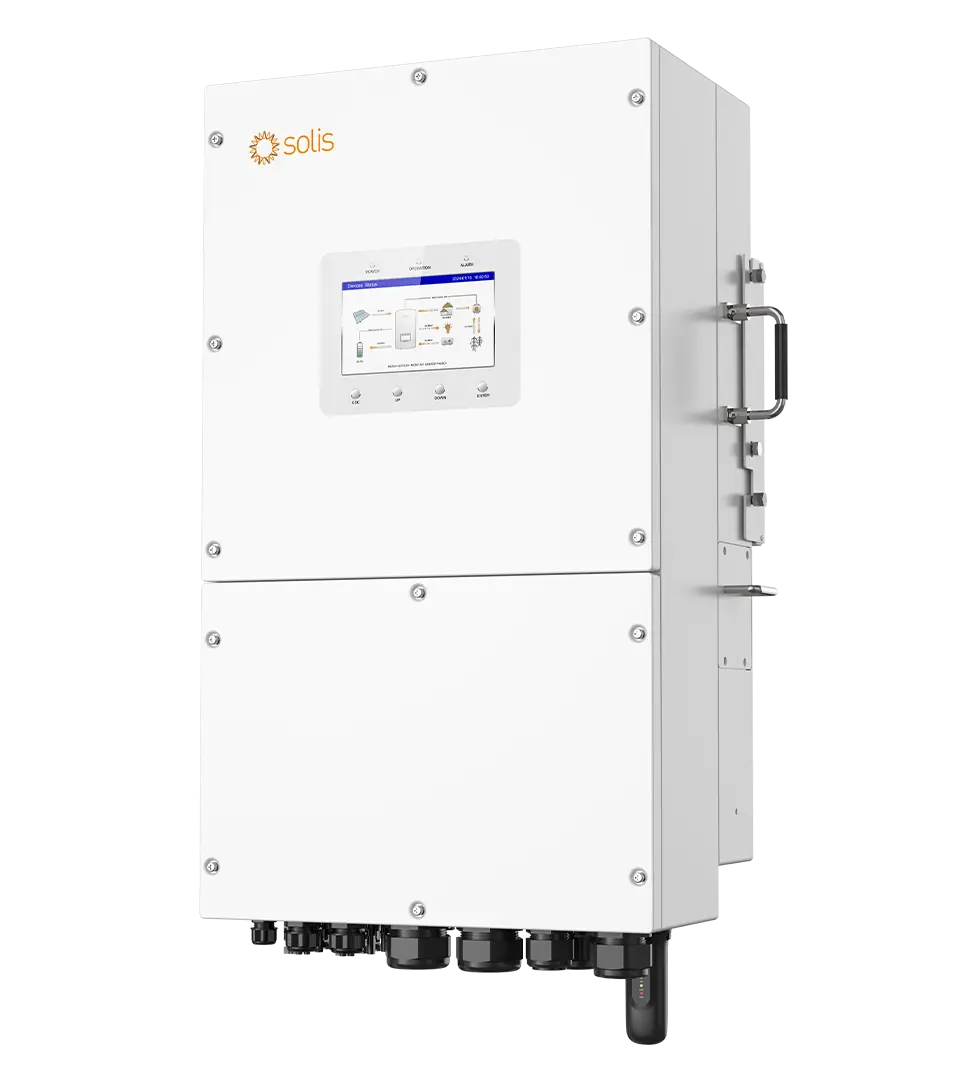

Solis S6-EH1P16K03-NV-YD-L | Solarator Series 16kW Single-Phase Hybrid Inverter
Uninterrupted power, even in areas with grid instability.
Part of Solis's Solarator Series, the S6-EH1P16K03-NV-YD-L is a single-phase, low-voltage energy storage inverter built to operate seamlessly with a generator — delivering reliable power even where the grid isn't. It supports PV input up to 160% of its rated DC power, switches between on/off-grid in under 10ms, and handles 200% overload for 10 seconds off-grid for stable startup of motors, pumps, and air conditioners.
Why Choose This Inverter
- Maximized Solar Utilization — Supports PV input up to 160% of the inverter's rated DC power
- Future-Ready PV Compatibility — Handles up to 20A PV input current for higher-power PV modules
- Robust Off-Grid Startup — 200% overload for 10s in off-grid mode for stable motor, pump, and AC startup
- Seamless Switching — On/off-grid switching in under 10ms for uninterrupted power
- Wide Battery Compatibility — Works with any battery between 40V and 60V
- Grid-Tied Flexibility — Supports existing PV grid-tied connections for export control and off-grid use
- Generator Ready — Multiple generator connection methods with auto control for flexible deployment
- Expandable System — Supports up to 6 units in parallel for greater capacity
- Smart Load Management — Extends backup time for critical loads
- Customizable Backup — Adjustable battery backup level for uninterrupted power
- PV-Only Off-Grid Operation — Reduces upfront costs by skipping the need for a battery in some setups
- SolisCloud Platform — Smart remote control, AI optimization, and instant troubleshooting
- Large 7" Touchscreen — Industrial-grade display for user-friendly local operation
- Harsh-Condition Ready — IP66 ingress protection rating
Key Specifications
| Parameter | Value |
|---|---|
| Recommended Max. PV Array Size | 32 kW |
| Max. Usable PV Input Power | 25.6 kW |
| Max. PV Input Voltage | 550 V |
| Rated Voltage | 380 V |
| MPPT Voltage Range | 80–520 V |
| Max. Input Current | 40A / 40A / 40A |
| MPPT Number / Max. Input Strings | 3 / 6 |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Current | 290 A |
| Communication (Battery) | CAN / RS485 |
| Rated Output Power (Grid) | 16 kW |
| Max. Apparent Output Power | 16 kVA |
| Rated Grid Voltage | L/N/PE, 220V / 230V |
| Rated Grid Output Current | 72.7A / 69.6A |
| Power Factor | >0.99 (0.8 leading – 0.8 lagging) |
| THDi | <3% |
| Rated Output Power (Back-up) | 16 kW |
| Max. Apparent Output Power (Back-up) | 2× rated power for 10s |
| Back-up Switch Time | <10ms (single); <20ms (parallel, up to 6 units) |
| Max. AC Passthrough Current | 90 A |
| Max. Efficiency | 97.6% |
| EU Efficiency | 97.0% |
| BAT Charged by PV / AC Max. Efficiency | >94.9% / >94.33% |
| Battery Discharged Efficiency | 93.51% |
| Dimensions (W×H×D) | 459 × 845 × 313 mm |
| Weight | 55.5 kg |
| Inverter Topology | Non-isolated (PV), Isolated (Battery) |
| Self-Consumption | <40 W |
| Operating Temperature Range | -25°C ~ +60°C |
| Relative Humidity | 0–100% |
| Ingress Protection | IP66 |
| Noise Emission (typical) | <65 dB(A) |
| Cooling Concept | Intelligent redundant fan-cooling |
| Max. Operation Altitude | 4000 m |
Protection Features
Surge protection, output over current protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection (PV only), optional Integrated AFCI 2.0, and anti-islanding protection.
Connectivity & Interfaces
MC4 PV connector, terminal-block battery and AC connections, 7.0" LCD display with Bluetooth + APP. Standard communication: WiFi + LAN + Bluetooth, CAN-BMS, CAN-Parallel×2, RS485-Meter, RS485, DRM, DI, DO×2. Optional 4G connectivity.
Certifications
NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, EN50549-1; IEC/EN 62109-1/-2, EN 61000-6-2/-3
Ideal For
Residential and commercial single-phase solar-plus-storage systems in areas with grid instability — combining generator integration, smart load management, and cloud-based remote monitoring, with the flexibility to scale into a multi-inverter parallel system.
Specifications per manufacturer datasheet (Solis Solarator Series S6-EH1P(12-18)K03-NV-YD-L, Single Phase Low Voltage, South Africa Flyer V2.2). Specifications subject to change without notice.
