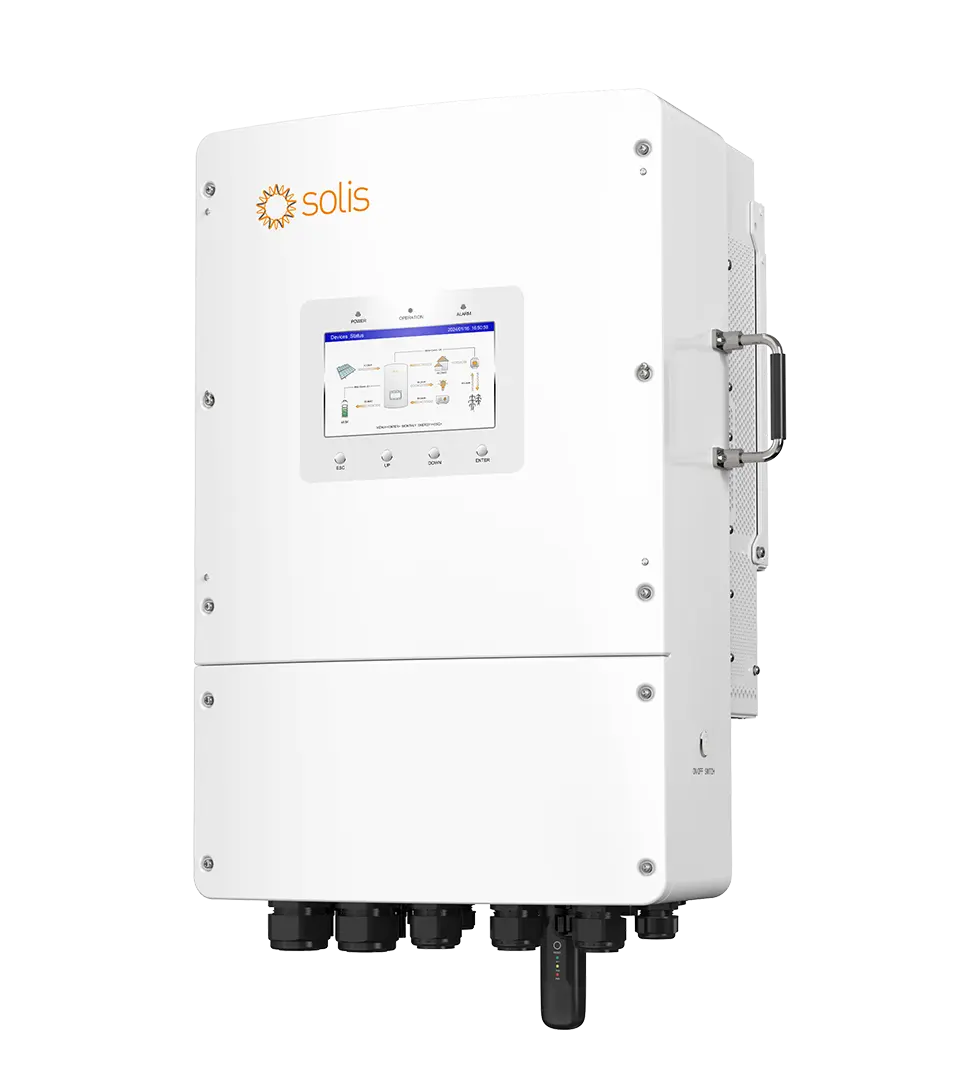

Solis S6-EH3P15K02-NV-YD-L | Solarator Series 15kW Three-Phase Hybrid Inverter
Uninterrupted power for demanding three-phase solar and storage installations.
Part of Solis's Solarator Series, the S6-EH3P15K02-NV-YD-L is a three-phase, low-voltage energy storage inverter built to maximize solar utilization and deliver seamless backup power. It supports PV input up to 160% of its rated DC power, switches between on/off-grid in under 10ms, and handles 200% overload for 10 seconds off-grid — enough to reliably start motors, water pumps, and air conditioners.
Why Choose This Inverter
- Maximized Solar Utilization — Supports PV input up to 160% of the inverter's rated DC power
- Future-Ready PV Compatibility — Handles up to 21A PV input current for higher-power PV modules
- Robust Off-Grid Startup — 200% overload for 10s in off-grid mode for stable motor, pump, and AC startup
- Seamless Switching — On/off-grid switching in under 10ms for uninterrupted power
- Three-Phase Unbalanced Output — Each phase supports up to 50% of rated inverter power
- DC and AC Coupling — Flexibly expand PV, charge batteries, and power loads even off-grid
- Generator Ready — Multiple generator connection methods with auto control for flexible deployment
- Expandable System — Supports up to 6 units in parallel for greater capacity
- Smart Load Management — Prioritization extends backup time for critical loads
- Customizable Backup — Adjustable battery backup level for uninterrupted power
- PV-Only Off-Grid Operation — Reduces upfront costs by skipping the need for a battery in some setups
- SolisCloud Platform — Smart remote control, AI optimization, and instant troubleshooting
- Large 7" LCD Screen — Industrial-grade display for user-friendly local operation
- Harsh-Condition Ready — IP66 ingress protection rating
Key Specifications
| Parameter | Value |
|---|---|
| Recommended Max. PV Array Size | 30 kW |
| Max. Usable PV Input Power | 24 kW |
| Max. PV Input Voltage | 1000 V |
| MPPT Voltage Range | 200–850 V |
| Max. Input Current | 40A / 40A |
| MPPT Number / Max. Input Strings | 2 / 4 |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Current | 290 A |
| Max. Charge/Discharge Current per Port | 175 A |
| Communication (Battery) | CAN / RS485 |
| Rated Output Power (Grid) | 15 kW |
| Max. Apparent Output Power | 15 kVA |
| Rated Grid Voltage | 3/N/PE, 220V/380V; 3/N/PE, 230V/400V |
| Rated Grid Output Current | 22.8A / 21.7A |
| Power Factor | >0.99 (0.8 leading – 0.8 lagging) |
| THDi | <3% |
| Rated Output Power (Back-up) | 15 kW |
| Max. Apparent Output Power (Back-up) | 2× rated power for 10s |
| Back-up Switch Time | <10ms (single); <20ms (parallel, up to 6 units) |
| Max. AC Passthrough Current | 50 A |
| Max. Efficiency | 97.5% |
| EU Efficiency | 97.0% |
| BAT Charged by PV / AC Max. Efficiency | 95.0% / 94.4% |
| Battery Discharged Efficiency | 94.5% |
| Dimensions (W×H×D) | 430 × 660 × 305 mm |
| Weight | 42 kg |
| Inverter Topology | Non-isolated (PV), Isolated (Battery) |
| Self-Consumption | <30 W |
| Operating Temperature Range | -25°C ~ +60°C |
| Relative Humidity | 0–100% |
| Ingress Protection | IP66 |
| Noise Emission (typical) | <65 dB(A) |
| Cooling Concept | Intelligent fan-cooling |
| Max. Operation Altitude | 4000 m |
Protection Features
DC Type II / AC Type II (optional) surge protection, output over current protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection, optional Integrated AFCI 2.0, and anti-islanding protection.
Connectivity & Interfaces
MC4 quick-connection PV plugs, screw-terminal battery and AC connections, 7.0" LCD display with Bluetooth + APP. Standard communication: WiFi + LAN + Bluetooth, CAN-BMS, CAN-Parallel×2, RS485-Meter, RS485, DRM, DI, DO×4. Optional 2G/3G/4G connectivity.
Certifications
EN 50549-1/-10, VDE 4105 & VDE 0124, NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, SriLanka, EN 50438L, Vietnam, MEA, PEA, CEI 0-21; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Ideal For
Residential and commercial three-phase solar-plus-storage systems needing high-capacity, reliable backup power — with smart cloud monitoring and the flexibility to scale into a multi-inverter parallel system.
Specifications per manufacturer datasheet (Solis Solarator Series S6-EH3P(5-18)K02-NV-YD-L, Three Phase Low Voltage). Specifications subject to change without notice.
