Description

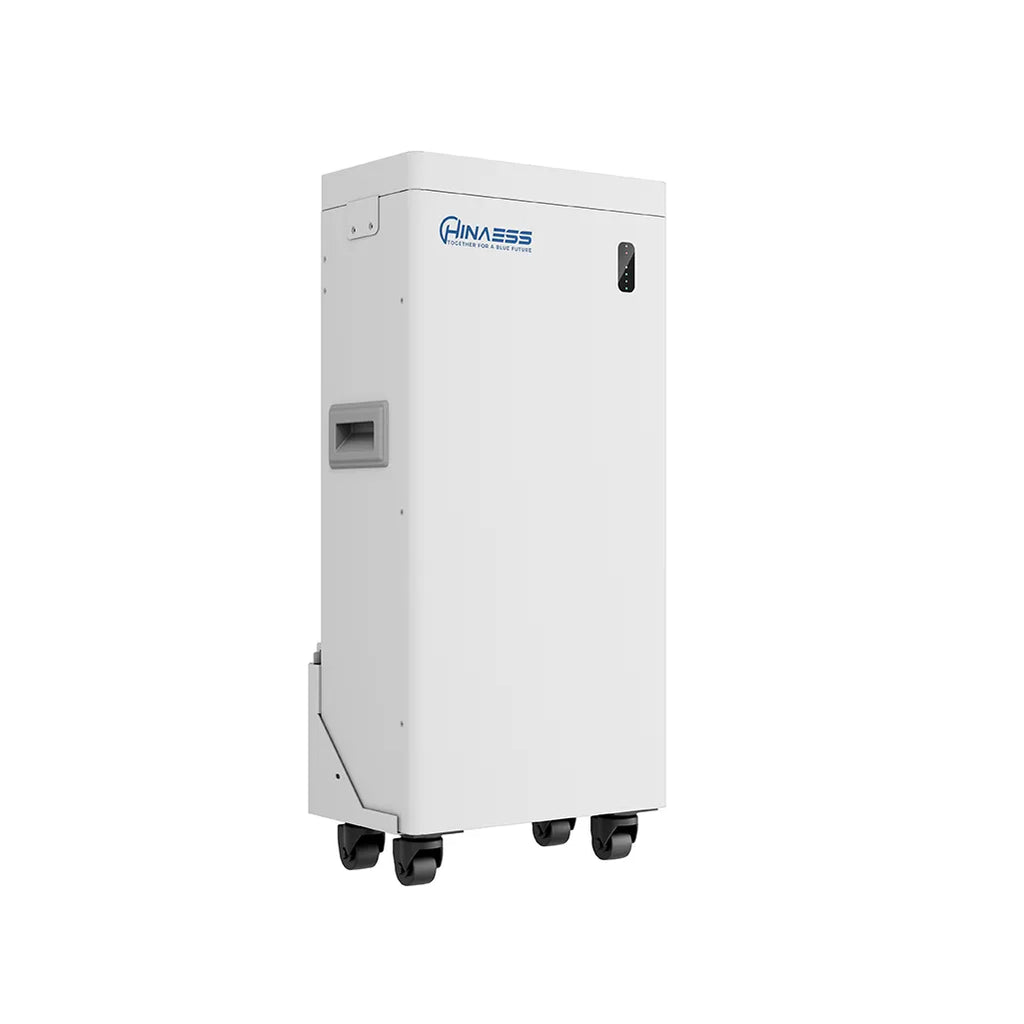

HINAESS PowerGem Max | 51.2V 16kWh LFP Battery (8,000 Cycles)
High-power, stackable home and commercial battery built for robust, long-term performance.
The PowerGem Max delivers 16.076kWh of LiFePO4 storage with 200A continuous discharge power, engineered for 8,000 cycles and backed by a 10-year warranty. With auto-addressing, stronger protection for robust applications, and three ways to install — stackable, floor-standing, or wall-mount — it's built to scale from a single household unit up to large parallel battery banks.
Why Choose This Battery
- 200A Continuous Power — High-current design supports demanding loads and multiple appliances at once
- Massive Scalability — Parallel up to 50 units without extra hardware, or up to 256 units with a hub
- Resilient System Design — A slave battery dropping offline or coming back online doesn't affect overall system running
- 3 Ways to Install — Stackable, floor-standing, or wall-mount, with wheels or foot bracket options
- WiFi / Bluetooth Monitoring — Free remote monitoring with flexible remote upgrade and maintenance
- Ultra-Safe LFP Material — Built-in fire suppression, with an optional heating system for cold climates
- Smart BMS Management — Multi-layer protection extends battery lifespan and guards against over-discharge
- Wide Inverter Compatibility — Works with Victron, Luxpower, Deye, Voltronic, SMA, Ingeteam, GoodWe, Growatt, Solis, Sofar, Solark, SRNE, Must, and more
- 8,000-Cycle Life — Backed by a 10-year warranty
Key Specifications
| Parameter | Value |
|---|---|
| Cell Type | LFP |
| Rated Energy | 16.076 kWh |
| Rated Capacity | 314 Ah |
| Rated Voltage | 51.2 V |
| Charge Voltage | 57.2 V |
| Battery Charge Current | 160A max continuous; 180A peak (15s); 200A peak (500ms) |
| Battery Discharge Current | 200A max continuous; 210A peak (2 min); 220A peak (500ms) |
| Parallel Capability | Up to 50 units (no hub needed); up to 256 units with hub |
| IP Level | IP20 |
| Dimensions (W×D×H) | 900 × 445 × 235 mm |
| Weight | 113 kg |
| Communication | CAN/RS485 |
| Robust Applications | Auto-addressing and stronger protection |
| Depth of Discharge (DOD) | 90% |
| Cycle Life | 8,000 cycles |
| Work Charge/Discharge Temperature | 0°C ~ +55°C / -20°C ~ +55°C |
| Humidity | 5%~85% RH (no condensation) |
| Warranty | 10 years, 8,000 cycles* |
| Certification | CE, UN38.3, IEC62619 |
| Protection | Over charge/discharge/current/voltage/temperature, short circuit, reverse connection, charge balance, low SOC protection |
*Warranty cycle rating tested at 25°C, 90% DOD, 0.5C.
Compatible Inverters
Victron, Luxpower, Deye, Voltronic, SMA, Ingeteam, GoodWe, Growatt, Solis, Sofar, Solark, SRNE, Must
Ideal For
Homeowners and installers needing a high-power, scalable LFP battery for demanding solar and backup applications — with flexible mounting options and the reliability to grow into a large multi-module system.
Specifications per manufacturer datasheet (HINAESS PowerGem Max, 20260630). Specifications subject to change without notice.
