Description

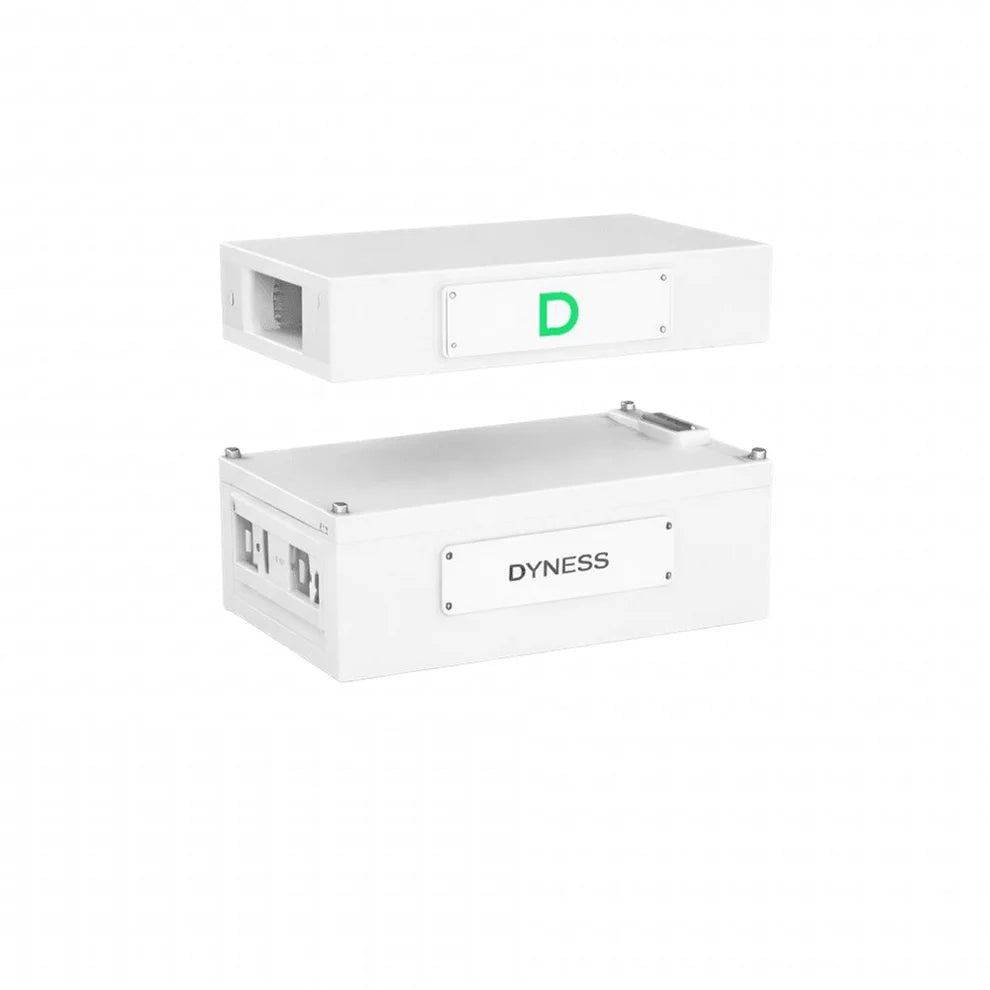

Dyness STACK280 | Stackable Commercial & Industrial LFP Battery System
Rackless, cable-free stacking energy storage built for small commercial and industrial scale.
The Dyness STACK280 uses high-capacity 280Ah LiFePO4 cells in a rackless, stackable design that's simple to plug and play. Scale from a single stack up to 12 clusters in parallel — reaching a maximum system capacity of 2.58MWh — while a built-in aerosol fire extinguisher detects and suppresses fire hazards within 5 seconds for all-around electrical safety.
Why Choose This System
- Flexible Expansion — Stack up to 12 clusters in parallel for a system energy range of 43kWh to 2.58MWh
- Ultra Safe — Intelligent fire extinguishing system detects and extinguishes fire within 5 seconds
- Easy Installation — Cable-free connection between modules for true plug-and-play stacking
- Long Life — LiFePO4 cells rated for 8,000+ cycles, backed by a 10-year warranty
- Module Mixing — Supports mixing of modules within a three-year window
- Fast Charge/Discharge — Maximum continuous charge/discharge current of 200A
- Smart Monitoring — WiFi + App interface with CAN/RS485 communication
- Broad Inverter Compatibility — Works with Solis, Growatt, Sosen, Solinteg, Atess, Magarevo, Deye, and more
Key Specifications
| Parameter | Value |
|---|---|
| Battery Type | LiFePO4 (LFP) |
| Nominal Battery Energy | 14.336 kWh (per cluster) |
| Usable Battery Energy | 13.619 kWh (per cluster) |
| Nominal Capacity | 280 Ah |
| Nominal Voltage | 51.2 V |
| Module Number per Cluster | 3~15 pcs |
| Operating Voltage | 134.4V ~ 864V |
| System Energy Range | 43 kWh ~ 215.04 kWh (per stack) |
| Recommended Charge/Discharge Rate | 0.5C (140A) |
| Max Charge/Discharge Rate | 0.7C (200A) |
| Peak Discharge Current (25°C) | 280A for 2 min |
| Recommended Charge/Discharge Power | 7.168 kW |
| Max Charge/Discharge Power | 10.24 kW |
| Depth of Discharge (DOD) | 95% |
| Cycle Life | ≥8,000 cycles |
| Charging Temp Range | 0°C~55°C / -20°C~55°C (optional) |
| Discharging Temp Range | -20°C ~ 55°C |
| Protection Level | IP20 |
| Cooling Method | Forced wind cooling |
| Communication | CAN/RS485, WiFi + App |
| Expansion | Up to 12 clusters in parallel |
| Net Weight | 38 + 110×n kg |
| Single Cluster Dimensions (W/D/H) | 770/425/(363+230×n) mm |
| Battery Module Name | S51280 |
| Warranty Period | 10 years |
| Certification & Safety Standards | UN38.3, CE-EMC, IEC62619 |
Ideal For
Small commercial and industrial energy storage applications needing a safe, scalable, easy-to-install battery system — from behind-the-meter storage to peak shaving and backup power.
Specifications per manufacturer datasheet (Dyness, File version 20251030-EN). Net weight of expansion base and upper cover: 18.5kg. "n" represents the number of battery modules, up to a maximum of 8; evaluate floor loading before determining stack count for upper-floor installations. Information subject to change without notice during product improvement.
