Description

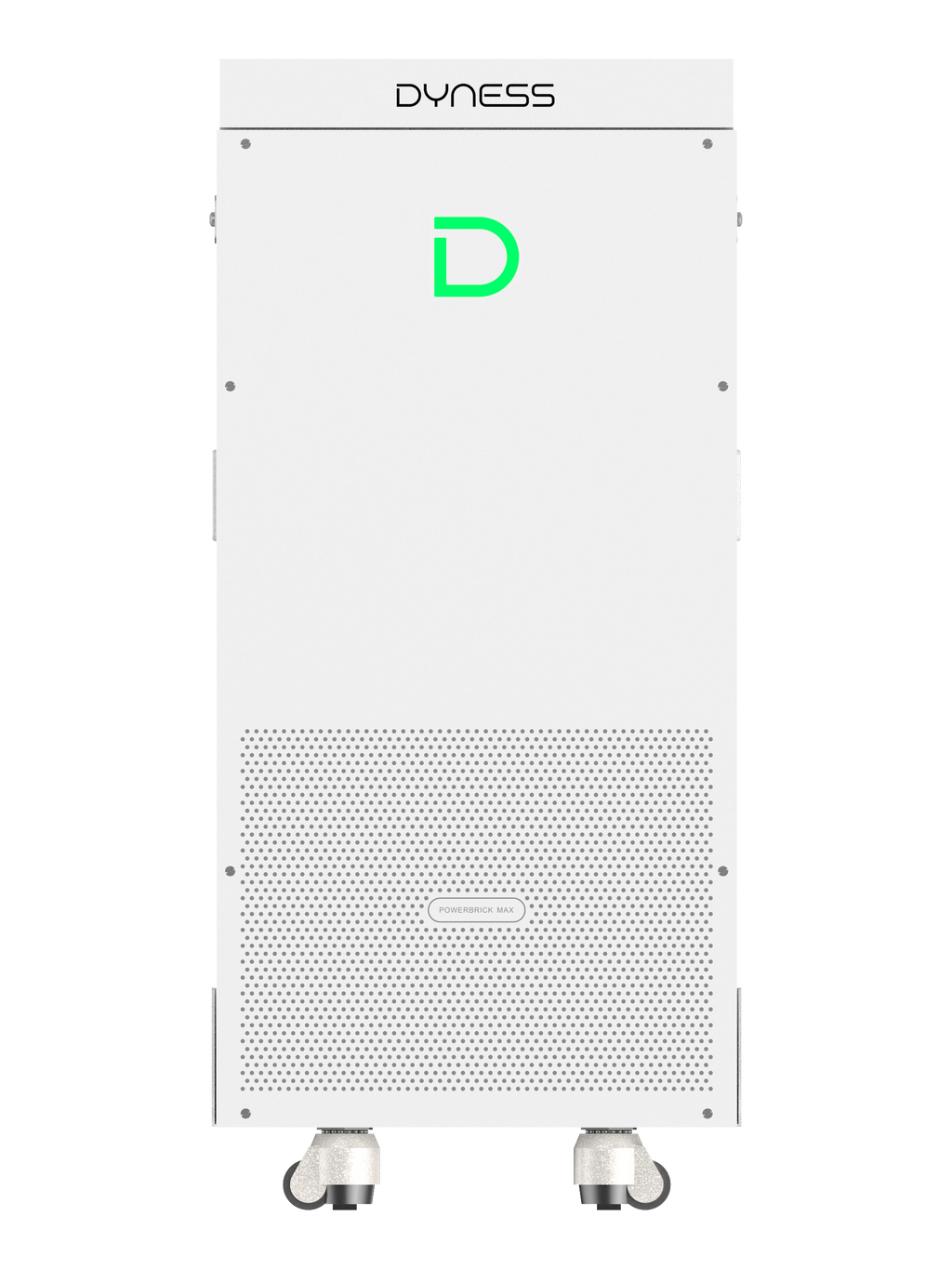

Dyness PowerBrick Max | 16kWh LFP Home Battery System
Stylish, low-voltage home energy storage built for safety, reliability, and effortless expansion.
PowerBrick Max is a low-voltage LiFePO4 battery designed for household energy storage, combining a sleek, modern appearance with serious performance. Each unit uses a high-capacity 314Ah battery, and up to 50 units can be paralleled together for a capacity range from 16.07kWh all the way up to 803.5kWh — giving homeowners a highly safe, reliable, intelligent, and user-friendly storage experience.
Why Choose This Battery
- Ultra Safe — Intelligent fire extinguishing system detects and extinguishes fire within 5 seconds
- Fast Charge/Discharge — Max charge/discharge current of 200A, capable of simultaneously supplying multiple loads
- Flexible Expansion — Up to 50 units in parallel, scaling from 16.07kWh to 803.84kWh
- Easy Installation — Supports both wall-mounted and floor-mounted setups; built-in wheels let one person move it easily
- Long-Term Reliability — 314Ah LFP cells rated for 8,000+ cycles, backed by a 10-year warranty
- Smart Monitoring — WiFi + App user interface with CAN/RS485 communication
- Broad Inverter Compatibility — Works with SMA, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, Deye, Apsystem, and more
Key Specifications
| Parameter | Value |
|---|---|
| Battery Type | LiFePO4 (LFP) |
| Nominal Battery Energy | 16.076 kWh |
| Usable Battery Energy | 15.272 kWh |
| Nominal Capacity | 314 Ah |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8V ~ 57.6V |
| Recommended Charge/Discharge Rate | 0.45C (140A) |
| Max. Charge/Discharge Rate | 0.64C (200A) |
| Peak Discharge Current (25°C) | 300A for 2 min |
| Recommended Charge/Discharge Power | 7.168 kW |
| Max. Charge/Discharge Power | 10.24 kW |
| Depth of Discharge (DOD) | 95% |
| Charge Temp. Range | 0°C ~ 55°C |
| Discharge Temp. Range | -20°C ~ 55°C |
| Net Weight | 116 kg |
| Dimensions (W/D/H) | 435 / 233 / 857 mm |
| Protection Level | IP20 |
| Communication | CAN/RS485, WiFi + App |
| Cycle Life | ≥8,000 cycles |
| Safety Protection | Built-in aerosol fire extinguisher |
| Installation | Floor-mounted, wall-mounted |
| Expansion | Up to 50 units in parallel |
| Warranty Period | 10 years |
| Certification & Safety Standard | UN38.3 / IEC62619 |
Ideal For
Homeowners looking for a safe, scalable, and easy-to-install battery system for solar self-consumption, backup power, and energy independence — with an elegant design that fits naturally into any home.
Specifications per manufacturer datasheet (Dyness, File version 20251215-EN(AF)). Cycle life test conditions: 0.2C charging & discharging, 25°C, 95% DOD, 70% EOL. Information subject to change without notice during product improvement.
