Description

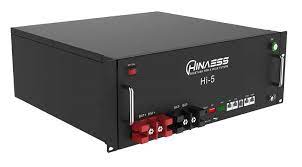

The Hina ESS 5.12kWh Lithium Battery Hi-5.
It is an excellent choice for residential and commercial applications Ultra Safe LFP Material: Built with Lithium Iron Phosphate (LFP) material, this battery ensures ultra-safety, offering enhanced stability and protection for your energy storage needs, Together for the Blue Future.
Product Advantages:
- 10 year warranty
- Ultra safe LFP material
- Short circuit protection
- Flexible remote upgrade
- Wide range inverter compatibility
- Parallel up to 32 modules
- 1C rate continuous charge/discharge
- Multi protection to avoid over discharge
- Smart BMS management for longer lifespan
- Active balancing charging, low self consumption
Description
- Model: Hi-5
- Cell Type: LFP
- Rated Power: 5.12KWH
- Rated Capacity: 100Ah
- Rated Voltage: 51.2V
- Charge Voltage: 56.5V
- Charge / Discharge Rating: 1C
- Maximum Charge / Discharge Current: 100A
- Discharge Peak Current: 105A – 15s / 120A – 0.5s
- Parallel Capacity: Up to 32 Units
- Mounting Type: Rack Mount
- Enclosure Protection: IP20
- Communication: CAN / RS485
- Humidity: 5% to 85% (Non-Condensing)
- Working Temperature: -20°C to 55°C
- Storage Temperature: -10°C to 35°C
- Certification: CE UN38.3 / IEC62619
- Weight: 50kg
- Dimensions: 48.1 x 45.26 cm
