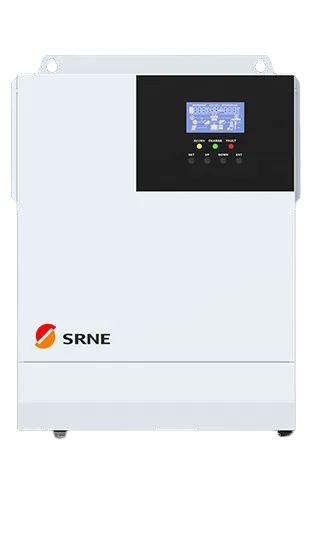

SRNE 3kW 24V 60A
The SRNE 3kW 24V 60A inverter is a versatile and reliable choice for small residential and off-grid solar power systems. Designed to efficiently convert solar energy and charge batteries, this inverter is perfect for backup power or remote applications. With a 3kW power output, 24V system voltage, and a 60A maximum current, the SRNE inverter ensures efficient energy management and robust performance. Enhance your solar power setup with the SRNE 3kW 24V 60A inverter, engineered for optimal efficiency and dependable operation.
AC Mode
- Rated Input Voltage: 230VAC
- Input Voltage Range: 90VAC to 280VAC
- Frequency: 50Hz / 60Hz (Auto detection)
- Overload / Short Circuit Protection: Circuit Breaker
- Efficiency: >95%
- Conversion Time: 10ms
- Maximum Bypass Overload Current: 30A
Inverter Mode
- Output Voltage Waveform: Pure Sine Wave
- Rated Output Power: 3000W
- Power Factor: 1
- Rated Output Voltage: 230VAC
- Output Frequency: 50Hz / 60Hz
- Efficiency: >92%
- Loaded Motor Capability: 2HP
- Output Short Circuit Protection: Circuit Breaker
- Bypass Breaker: 30A
- Rated Battery Input Voltage: 24VDC (Min Start Voltage of 22VDC)
- Battery Voltage Range: 20VDC – 33VDC
AC Charging
- Battery Type: Lead Acid / Lithium
- Maximum Charging Current: 80A
- Charging Voltage Range: 20VDC to 33VDC
- Short Circuit Protection: Circuit Breaker and Blown Fuse
- Circuit Breaker: 30A
PV Charging
- Maximum PV Open Circuit Voltage: 100VDC
- PV Operating Voltage Range: 30VDC to 100VDC
- MPPT Voltage Range: 30VDC to 85VDC
- Maximum Input PV Power: 1400W
- PV Charging Current Range: 0A to 60A (Adjustable)
- Charging Short Circuit Protection: Blown Fuse
- Wiring Protection: Reverse Polarity Protection
Environment Limit
- Ingress Protection: IP20
- Operating Temperature Range: -15°C to +55°C
- Humidity Range: 5% to 95% (Conformal Coating Protection)
- Cooling: Forced Air Cooling, Variable Speed Fan (<60dB)
- Communication: USB / RS485(WIFI/GPRS) / Dry Node Control
